Hot DIP Galvanized Steel Helical Piers Anchor For Foundation Repair Solutions

Detail Information
Product Description
Detail Information
Application:
Industrial
Material:
Steel
Type:
Pile-ground Bracket
Raw Material:
Customized
Helix:
Customized
Shaft:
Customized
Standard:
ASTM
Surface:
Hot DIP Galvanized
Length:
1200/1600/1800/2000mm
Transport Package:
Steel Pallet
Specification:
Customised
Trademark:
KXD
Origin:
China
HS Code:
730110
Supply Ability:
50000 Sets Per Year
Package Size:
12000.00cm * 2300.00cm * 2300.00cm
Package Gross Weight:
27.000kg
Customization:
Available
After-sales Service:
One Year
Warranty:
One Year
Shipping Cost:
Contact The Supplier About Freight And Estimated Delivery Time.
Secure Payments:
Every Payment You Make At Made-in-china.com Is Protected By The Platform.
Refund Policy:
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Highlight:

Galvanized Helical Piers Anchor

,

Steel Helical Piers Anchor

Product Description

Product Description

A helical anchor/pile is an extendable deep foundation system with helical bearing plates welded to a central steel shaft. Anchors are used in tension applications and piles are used in compression applications. Load is transferred from the shaft to the soil through these bearing plates.

Helical piers, also known as anchors, piles or screw piles, are deep foundation solutions used to secure new or repair existing foundations,a modern improvement to traditional cement footings. Each pier consists of an engineered steel post with screw-like helices. Helical pile is extendable base equipment which is made up of helical engineered metallic plates that are attached to a central steel shaft using a round or rectangular cross-section. The steel plate thickness, diameter, number, and helices operate are determined through the restricted or supported arrangement's minimal design life, the ecological rust, and geotechnical parameters, along with the design fill demands.


Helical Piers--Description:

The original helical pier was designed as a wooden shaft with an iron helix for use in lighthouse foundations.
Today, helical piers are one of the two most common types of structural piering devices for residential foundation applications in use today. Helical piers are an excellent choice for foundation repair and stabilization when light
structural loads, unstable rock foundations or very deep load bearing stratums are present.

Ground Helical Anchor& Earth Helical Piers--Advantages
. A time-proven, versatile, and technically sound system.
· Lower cost and faster installation than other methods
· Installs quickly with small or handheld equipment.
· Can be installed in limited-access areas or tight access.
· Site cleanliness and minimize damage to landscape.
· Soil load bearing capacity is tested during installation.
· Helical anchors available with single, double and triple helix blades.

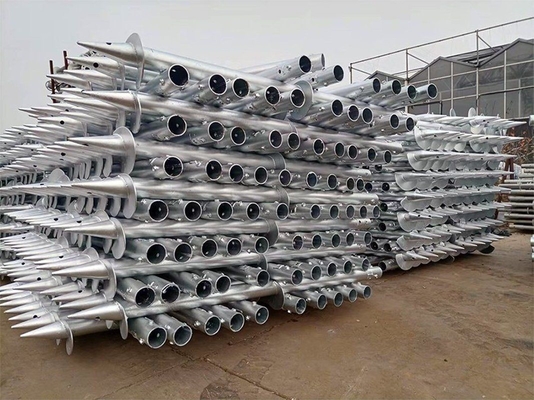

Foundation Repair Solutions Hot-DIP Galvanized Helical Piers AnchorFoundation Repair Solutions Hot-DIP Galvanized Helical Piers Anchor
Helical piers, also known as helical anchors, piles or screw piles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. Helical piers are round or square, tubular or bar steel shafts with round helix plates welded to them.

Ground screw system is a modern foundation system,using the drilling machine to install which makes it as the most efficient and cost-saving footing solution.
It can be widely applied to different soil conditions.
Ground screw appliation:
solar system;
timer-fram construction;
advertising and traffic systems;
urban garden and landscape construction;
flag poles and so on.
Screw anchor advantage:
Save time;
Easily assembled;
Save power;
Save money;
More environmental than Concrete Foundation method
Installation Instructions

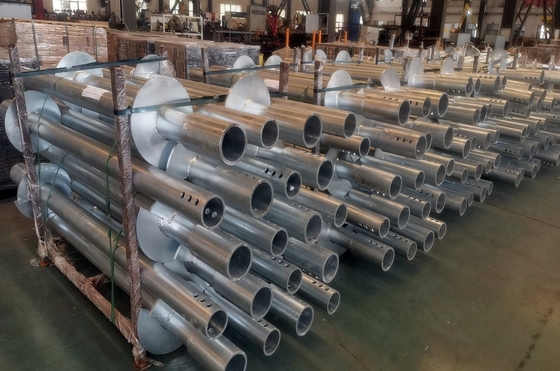

Foundation Repair Solutions Hot-DIP Galvanized Helical Piers AnchorFoundation Repair Solutions Hot-DIP Galvanized Helical Piers Anchor
The first piece of the helical pile is called the lead; this is the piece that is first rotated into the ground. The lead has multiple helical blades, also referred to as helical bearing plates, that can vary in size, shape, and number. After the lead follows any number of extensions, depending on the required torque or depth. These are simply shafts that are bolted and pinned to the lead and to each other at their ends. The top of the pile is the incorporated into the foundation system via a bracket or other connection method.

Helical Piles are used worldwide to secure residential and commercial buildings, tower foundations, heavy equipment foundations, and many other deep foundation system applications.

The shaft can come in either a circular or a square cross section shape and is typically hollow.


Round Shaft Helical Pile
Shaft Size
 OD in (mm)		 Wall Thickness
in (mm)		 Metal Area
in² (cm²)		 Perimeter
in (cm)		 Helix Size
in		 Helix Thickness
in		 Lead Length
ft		 Extension Length
ft
2.875 (73) 0.203(5.2) 1.7 (11.0) 9.0 (22.9) 8/10/12/14 3/8 or 1/2 3/5/7 3/5/7/10
2.875 (73) 0.276(7.0) 2.3 (14.8) 9.0 (22.9) 8/10/12/14 3/8 or 1/2 3/5/7 3/5/7/10
3.5 (89) 0.300 (7.6) 3.0 (19.5) 11.0(27.9) 8/10/12/14 3/8 or 1/2 3/5/7 3/5/7/10
4.5 (114) 0.337(8.6) 4.4 (28.4) 14.1(35.9) 8/10/12/14 3/8 or 1/2 3/5/7/10 3/5/7/10
6.625 (168) 0.28 (7) 5.58 (36.0) 20.8(52.8) 8/10/12/14 3/8 or 1/2 3/5/7/10 3/5/7/10
8.625 (219) 0.25(6) 6.58 (42.5) 27.1(68.8) 8/10/12/14 3/8 or 1/2 3/5/7/10 3/5/7/10
All above sizes, steel grade are customizable.

Helical anchor system may be used to reestablish new foundations or restore present ones. Helical foundation anchors are used for lighthouses, roads, railroads, telecommunication, and in a lot of different businesses that need rapid installation or structure near to present constructions. Evidence, maintaining structures, other common places make use of because they are appropriate for compression in addition to tensile loads.
Spiral ground pile is a new type of foundation building material, which can partially replace the traditional reinforced concrete pouring construction technology, making the building foundation more flexible and fast. It saves the construction cost of ground leveling, waste soil treatment and excavation, and can be widely used in foundation construction in all walks of life.

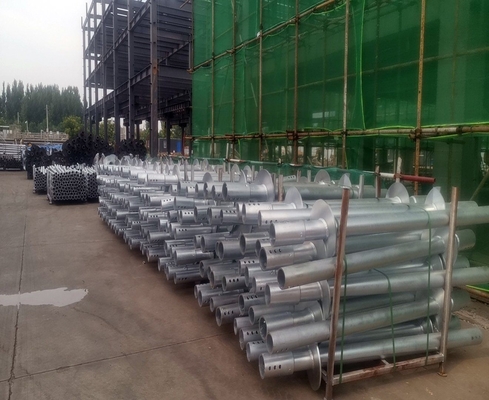

Foundation Repair Solutions Hot-DIP Galvanized Helical Piers Anchor
1. Structural advantages

The spiral ground pile is driven underground in a revolving way, so the soil is not easy to loosen, and the soil conditions can be well used. According to the blade structure of the screw ground pile, it has good tensile pull-out force and insertion grip.



2. Simple and efficient

As a new type of foundation technology, spiral ground pile has many outstanding advantages, such as convenient construction, short period, little impact from the construction environment, no damage to the local environment, easy migration and recycling.



3. Low cost

Compared with formwork erection, rebar binding and pouring of concrete. Embedded anchor bars, curing, formwork removal, foundation soil backfilling and other procedures, the spiral ground pile only needs to be positioned and driven, and the material and labor costs can be saved.



4. All weather construction

It has little impact on the environment and can be constructed under most climatic conditions, such as rain, snow, freezing and other weather.

Photovoltaic screw ground pile can reduce the cost of the foundation of the support system, shorten the installation time, and reduce the environmental impact of the ground photovoltaic support system. As a quick and cost-effective solution, it is applicable to all major solar photovoltaic, wind energy and construction industries. Its high load performance, stability, settlement resistance and pull-out resistance are the reasons for its rapid development.

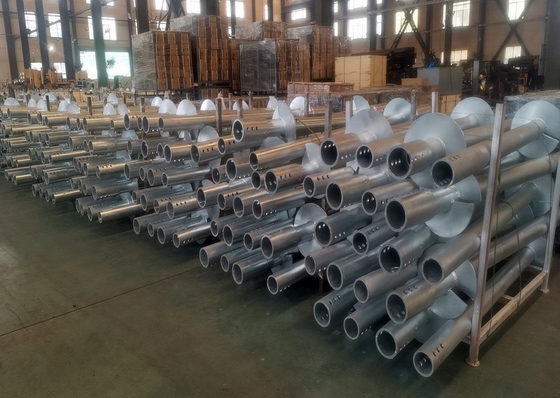

Foundation Repair Solutions Hot-DIP Galvanized Helical Piers Anchor
What are Helical Anchors?
A helical anchor is a deep foundation solution which is used in situations when standard solutions cannot be applied to your foundation project. Situations where a foundation may be exposed to moisture for a longer period of time or where the soil conditions are not normal for use, in such a situation a deep foundation solution like a Helical anchor is required

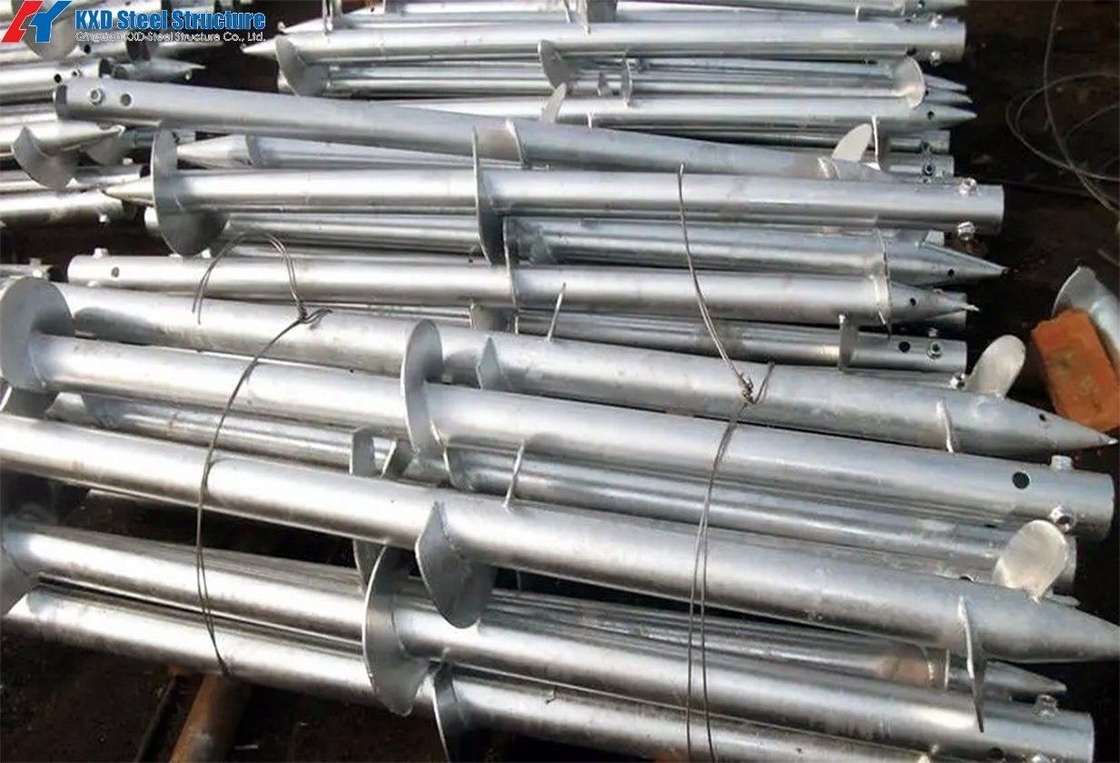

Foundation Repair Solutions Hot-DIP Galvanized Helical Piers Anchor
What are the benefits of Helical Anchors?
There are various benefits of using a helical anchor. Some of them are as follows:

It is easy to install and remove
It can be installed easily in any weather condition
It reduces carbon footprints
It has minimum vibration
It reduces foundation costs
It does not require excess soil
The installation process is very clean and tidy as there are no spoils left after installation

What would be the cost of Helical Anchors?
There are various factors involved while deciding the cost of helical anchors. Those factors are:
Location
Type of work
Condition of foundation
Depth of pile installation
 Foundation Repair Solutions Hot-DIP Galvanized Helical Piers AnchorFoundation Repair Solutions Hot-DIP Galvanized Helical Piers Anchor

How To Install Helical Anchors?
Helical anchors are installed before pouring the foundation or the soil foundation has been damaged
Helical anchors are screwed into the soil and depending upon the location they are attached to the pre-existing foundation with brackets or screws. After the helical anchors are installed the foundation is safe and is ready to combat any future damage due to compression and tension.

How many Helical Anchors are required ?
The number of helical anchors that you require depends upon the following factors:

Recommended distance between the piles
The type of structure

What is the purpose of Helical Anchors
The main purpose of a helical anchor is to transfer the structural load to the soil. There are various other applications also like tension, compression, and lateral load where helical anchors are used.

Foundation Repair Solutions Hot-DIP Galvanized Helical Piers Anchor
How to use Helical Anchors?
Drive the helical anchors into the soil up to the predetermined load capacity.
Space the helical anchors at predetermined intervals to share the weight of the structure.
For foundation repair works, attach the brackets to the base of the wall so that the weight is transferred to the anchor.
Install to a height below the ground level where they meet the required torque.

Where can i get helical anchors?
You can get it by searching for us by contacting us directly.

Where can i purchase helical anchors
You can contact us to purchase the best quality helical anchors at a very affordable price directly from us.

Foundation Repair Solutions Hot-DIP Galvanized Helical Piers Anchor
