Customized Steel Structure Workshop Building GB Standard With Different Window

Brand Name: KXD
Model Number: KXD-SW14
MOQ: 200 square meters
Price: USD 40-85 Per Square meter
Packaging Details: steel pallet & wooden box or in bulk
Payment Terms: T/T,L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China Qingdao
Certification:
ISO9001:2008
Shapes And Sizes:
Custom As Demands
Installation:
Engineer Guidance Or Turnkey Project
Wind Resist:
Design As Local Wind Situation
Sustainability:
Eco-friendly
Standard:
GB Standard Or As Your Standard
Product:
Whole Project System; Any Parts As Demands
Window:
Different Types On Option
Snow Load:
Design As Local Snow Situation
Material:
Q355b, Q235b
Insulation:
EPS, Glasswool, Rockwool, PU On Option
Coating:
Alkyd Painting, Epoxy Painting, Hot Dip Galvanized
Service Life:
30-50 Years
Workshop Visit And Check:
Acceptable
Supply Ability:
5000-9000 tons Per Month
Highlight:

Customized Steel Structure Workshop

,

Steel Structure Workshop GB

,

Customized Steel Workshop Building

Product Description

Customized Steel Structure Workshop Design for Your Project SiteCustomized Steel Structure Workshop Building GB Standard With Different Window 0

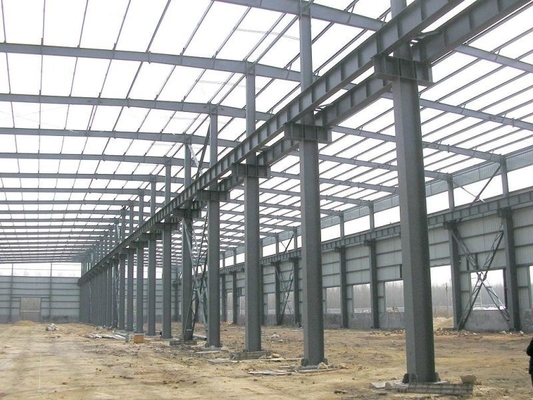

     Customized Steel Structure Workshop Building GB Standard With Different Window 1

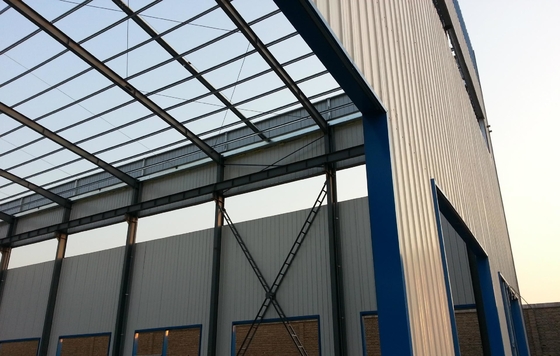

Customized Steel Structure Workshop Building GB Standard With Different Window 2

With the help of modern designing software such as AUTOCAD, PKPM, 3D3S, SAP2000, Tekla structures(Xsteel),we provide full designing and detailing service to all customers.
Basic designed details confirm to get a quick design and quotation
1. Project site location
2. Dimension (length*width*height)
3. Mezzanine or not? How many kgs of load per square meter on the mezzanine?
4. Corrugated steel sheet or Insulated sandwich panel ?
5. Wind speed & Snow load
6. Interior column allowed or not;
7. Overhead crane needed or not? Capacity:tons?
8. Doors and windows, sizes and layout?

9. Any further requirements?

OUR ADVANTAGES & SERVICES
Pre-sale service
1.Consultant service
2.Primary design plan
3.Budget calculation
4.Draw up the contract

During-sale Service
1.Fabrication and Packing
2.Statistcal table of material
3.Delivery
4.Submission of specific construction drawings

After-sale Service
1.Guidance and instructions for installation
2.Installation on site in needed
3.Feedback after sale

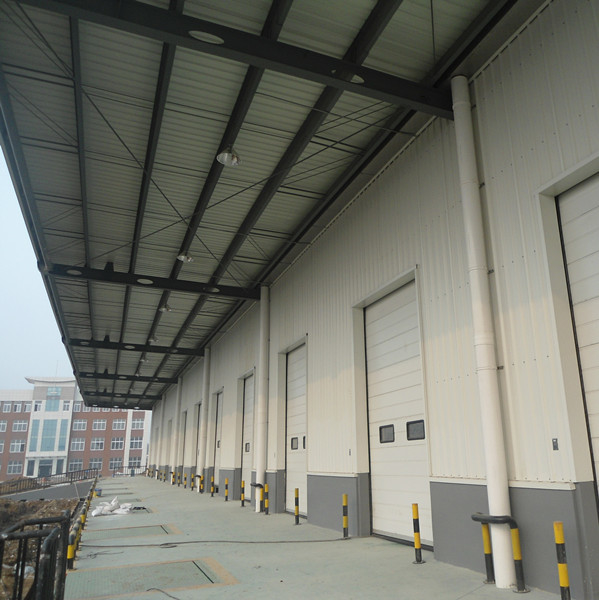

Customized Steel Structure Workshop Building GB Standard With Different Window 3

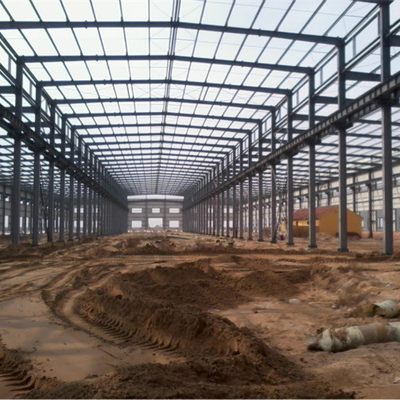

Customized Steel Structure Workshop Building GB Standard With Different Window 4

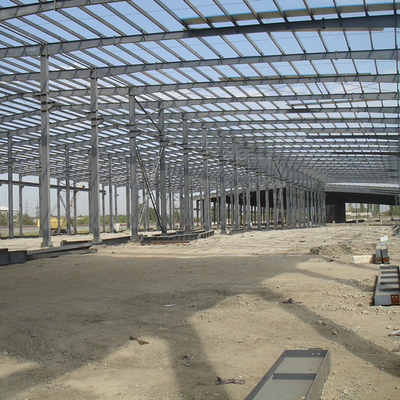

Customized Steel Structure Workshop Building GB Standard With Different Window 5


Customized Steel Structure Workshop Building GB Standard With Different Window 6



Customized Steel Structure Workshop Building GB Standard With Different Window 7

Chart 1 Mark on welding method and penetration type

Mark

Welding method

Penetration type

MC

Shielded metal arch welding

CJP-complete joint penetration

MP

PJP-partial joint penetration

GC

Shielded arch welding

Self-shielded arc welding

CJP-complete joint penetration

GP

PJP-partial joint penetration

SC

Submerged arc welding

CJP-complete joint penetration

SP

PJP-partial joint penetration

SL

Electroslag welding



 4.3. For the mark of single, double side welding and backing material type, please see the following chart 2

Chart 2 Single/double side welding and backing material type mark

Backing material type

Single/double side welding

Mark

Material

Mark

Single/double side welding

BS

Metal backing

1

Single side welding

BF

Other backing

2

Double side welding

4.4. Mark on each part size of groove, see chart 3.

Chart 3 Size mark on groove

Mark

Size of each part on groove

t

Thickness of welding plate(mm)

b

Groove root gap or gap between two members(mm)

h

Groove depth(mm)

p

Groove roof face(mm)

α

Groove angle(º)
