EPS Insulated Roof Cladding Metal Frame Prefaricated Workshop Warehouse

Brand Name:	KXD
Model Number:	KXD-SW12
MOQ:	200 square meters
Price:	USD 40-85 Per Square meter
Packaging Details:	steel pallet & wooden box or in bulk
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China Qingdao

Certification:

ISO9001:2008

Profile:

Hot Rolled H Steel

Material:

Q355b, Q235b

Technician:

Free Technical Support

Design:

Custom Exactly As The Demands

Drawing:

3D Model And Installing Drawing Available

Production:

Finished For Direct Install Support

Coating:

Alkyd Painting, Epoxy Painting, Hot Dip Galvanized

Insulation:

EPS, Glasswool, Rockwool, PU On Option

Standard:

Different Standards On Option As Demands

Install:

Online Guide Support & On-site Install

Service Life:

30-50 Years

Visit:

Workshop Visit And Check Available

Supply Ability:

5000-9000 tons Per Month

Highlight:

EPS Metal Frame Prefaricated Workshop

,

Insulated Metal Frame Prefaricated Workshop

,

EPS Prefab Metal Warehouse

Product Description

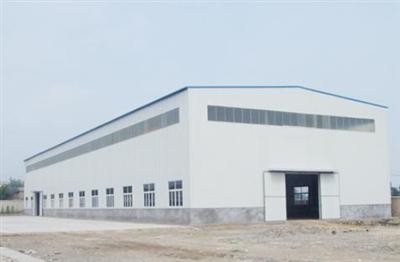

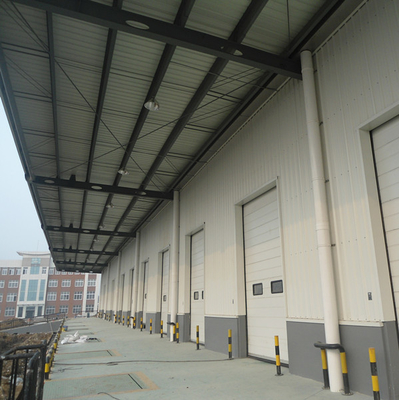

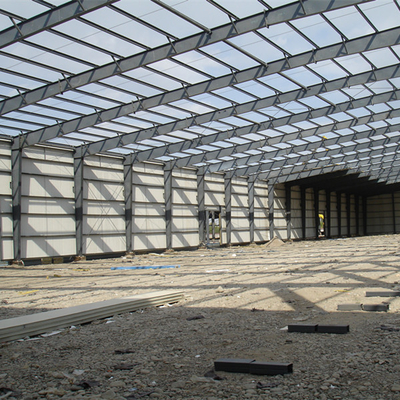

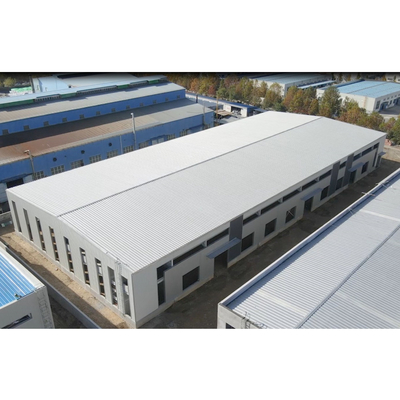

EPS Insulated Roof Cladding Metal Frame Prefaricated Workshop Warehouse

EPS Insulated Roof Cladding Metal Frame Prefaricated Workshop Warehouse 0

EPS Insulated Roof Cladding Metal Frame Prefaricated Workshop Warehouse 1

EPS Insulated Roof Cladding Metal Frame Prefaricated Workshop Warehouse 2

EPS Insulated Roof Cladding Metal Frame Prefaricated Workshop Warehouse 3

EPS Insulated Roof Cladding Metal Frame Prefaricated Workshop Warehouse 4

EPS Insulated Roof Cladding Metal Frame Prefaricated Workshop Warehouse 5

Specifications:

Main steel yield point	235MPa/355MPa
Column & Rafter	Welded H-shaped Section steel, Pre-painted.
Galvanized steel purlin	C-shaped / Z-shaped
Span	Single or multiple. The max distance is 36 meters without middle column.
Height	4.5~9.0 meters(if no bridge crane)
Skylight	Opitional
Ventilator	Opitional
Bridge crane	Opitional. If need it, lift capacity and lift height are needed.
Roof & Wall	Precast pre-painted steel sheet or sandwich panel.
Core material of sandwich panel	PU,Rock wool ,glass wool,EPS.
Door & Window	PVC or Aluminum alloy. Sliding door or rolling shutter door.
Drawing & Design	According to your drawing or our design as per customer's dimensions and requests.
Required design Load: (very important)	Rainfall/Wind load/Snow load/Seismic magnitude.More details is preferred.
Packing	Steel pallet packing or bulk As request

Steel structure storehouse features of high fire resistance, strong corrosion resistance. Steel structure storehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect.

The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich is polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant. The wall of the steel structure maintenance also can use brick wall. The cost of a brick wall is higher than galvanized steel roof and wall.

The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.

EPS Insulated Roof Cladding Metal Frame Prefaricated Workshop Warehouse 6
