Steel Structure Construction Prefabricated Angola Civil House

Brand Name:	KXD
Model Number:	KXD-Prefab house 100
MOQ:	20TONS
Price:	USD80-120/SQM
Packaging Details:	Nude packing, steel pallet packing
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

SGS,CE ,BV,ISO

Labor Costs:

Lower

Cerification:

ISO9001,CE

Steel Structure:

Weld-H Steel Or Hot-rolled H Steel

Grade:

Q345B,Q235B

Life Time:

30 Years

Hs Code:

9406900090/73089000

Prefabrication:

Off-site

Size:

Customizable

Packing:

Membrane Package/sea Worth Pakcage

Thickness:

5-28mm

Windows:

Aluminum Alloy

Drawing Design:

SAP2000, AutoCAD, PKPM, 3D3S, TEKLA

Supply Ability:

10000TON/DAY

Product Description

Steel Structure Construction Prefabricated Angola Civil House

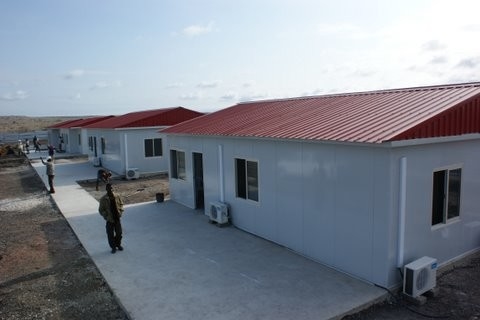

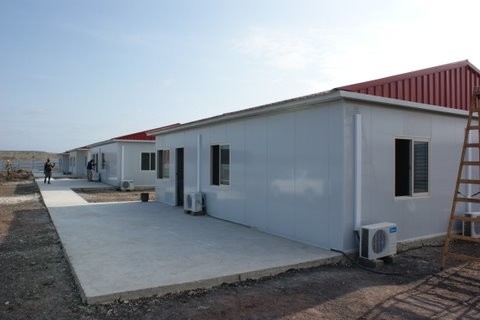

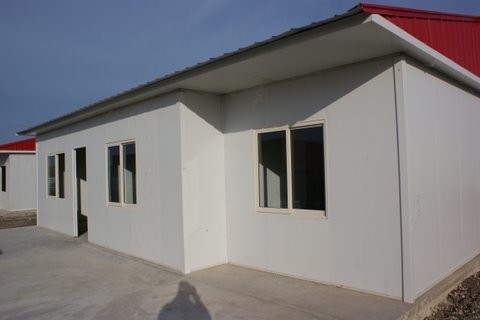

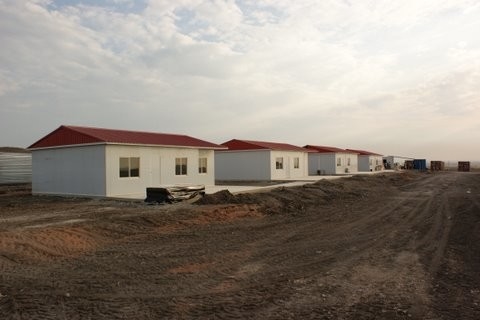

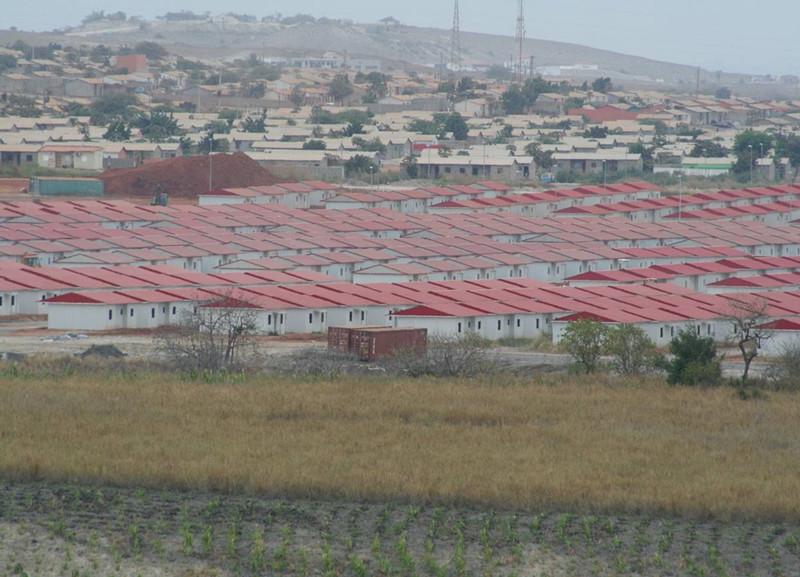

This project is that of the Angola civil house, with building area 69.93㎡/unit, 10.08m length, 7.35m width, eave height 2.6m; one floor and double slopes; wall and ceiling are made of V-950 type sandwich panels (0.5mm white/75mmEPS/0.5mm white); red V-900 type, 0.4mm steel sheet is used for roof sheet; square tube (□40*40*2) is adopted for beams and purlin.

Steel Structure Construction Prefabricated Angola Civil House 0

Steel Structure Construction Prefabricated Angola Civil House 2

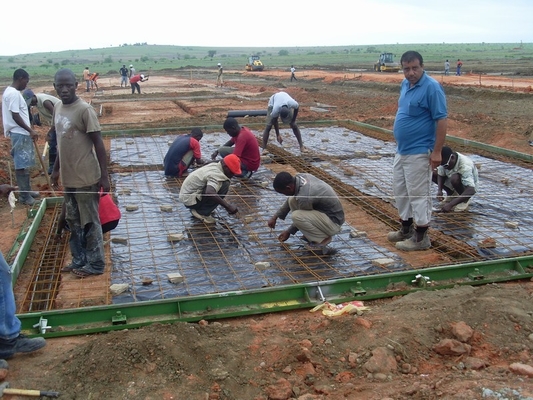

Lay the foundation:

PEB concept has been very successful and well established in North America, Australia and is presently expanding in U.K and other European countries. PEB is ideal for construction in remote & hilly areas due to its low cost and fast completion. PEB concept has acted as a catalyst in the infrastructure development of the country. Single storied houses for residential purposes take minimum time for construction and can be built in any type of geographic location like extreme hot, extreme cold hilly areas, high rain prone areas, plain land and seismic zones etc. The PEB rigid frame comprises of built-up members with tapered or straight columns and tapered rafters. The frame is erected by bolting the end plates of connecting sections together.

C.APPLICATION

Pre-engineered building systems finds primary application in construction of Warehouses and construction of Industrial Buildings. The recent focus has also shifted to cover Rural as well as urban, individual and mass housing projects, farmhouses and slum rehabilitation projects.

Application of pre-engineered steel buildings has also included the following:

PEB Structures are fabricated to the end user's requirement in a factory and erected at site, which leads to saving of time.

PEB is ideal for Factory Buildings, Warehouses, Aircraft Hangars, Indoor Stadiums, Fuel Stations, Metro Stations, Bus Terminals, Parking Lots, Schools, and Outdoor Stadiums with canopies where the intermediate columns are to be avoided.

PEB is ideal for Show Rooms, Office Complexes, Commercial Complexes & Supermarkets.

PEB is ideal for Labour Camps, Community Centers, Equipment housing , Telecommunication shelters, Airports, Railway Stations & Railway Storage yards, Exhibition Halls etc. due to its aesthetics look.

PEB is ideal for buildings in City Area where land cost is too high.

PEB is ideal for buildings that need to be relocated to other places.

PEB is ideal for buildings that are to be built faster.

PEB is ideal for Residential Sectors .

PEB is ideal for Buildings that need to be expanded in future

D.THE MATERIAL SPECIFICATIONS OF PEB MEMBERS ARE AS BELOW:

PRIMARY BUILT UP MEMBERS

High grade steel plate conforming to ASTM A572M Grade 345 Type 1 carrying minimum Yield Strength of 34.5kN/cm2. It is factory Pained with a Minimum of 40 microns (DFT) of red oxide primer.

SECONDARY MEMBERS:

Galvanized high grade steel conforming to ASTM A653 Structural quality Grade 50 with zinc coating G90, Available in 1.5 mm, 1.75 mm, 2.0 mm and 2.5 mm thicknesses having minimum Yeild Strength as 34.5 kN/cm2.

BRACING SYSTEMS :

M.S. Rod bracing shall conform to Structural Components of ASTM A36 Grade 36 or equivalent with minimum yield stress of 34.5KN/cm2.

SPECIFICATION OF STEEL:

Flange & web material for buildup section of all PEB structural member are fabricated from high grade steel plate conforming IS: 2062, ASTM AS 572 50, Grade 345 type. Purlins are secondary members of steel structure are cold formed Z & C shaped section are made of high grade steel conforming to ASTM A607 grade 50.

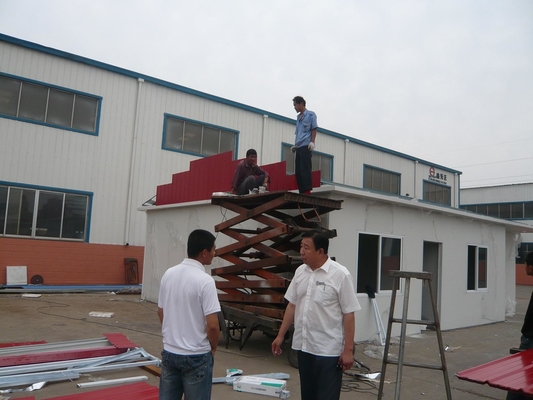

Under construction:

E.FABRICATION CAPABILITIES TO MEET CLIENT NEEDS

It is the practice of assembling components of a structure in a place and transporting complete assemblies or sub-assemblies to the site where the structure is to be located. Off-site fabrication offers advantages to help achieve significant time and cost savings, support fast-track project schedules and reduce risks such as adverse weather conditions and labor shortages.

Shiva Infra's comprehensive knowledge of EPC and project management (PM) allows us to optimize Clients' overall fabrication and construction configuration for cost and schedule advantages.

Pre Engineered Buildings offered by us are based on PEB concept, and are widely known for their exclusive designs and compactness. Our range of Pre Engineered Buildings includes PEB, Prefab Buildings, Industrial Sheds, Prefab Sheds, Metal Roofing, Wall Cladding, Metal Decking, Cee-Zed Purlins, PUF Panels, Insulated Sandwitch Panels, Metal False Ceiling, Turbo Roof Vents, Insulation and FRP-Polycarbonate Sheets.

We specialize to offer construction of heavy machine foundations for Retrofitting of Construction. With the support of our expertise, we undertake these projects, which helps make the foundation more strong, enabling it to bear heavy weight and ensure resistance against any natural hazards.

Due to the many decades of experience thus gained in design, manufacture, transport and installation, we have and will continue to develop systems which have proven themselves outstandingly in modern prefabricated element and system-oriented construction. Vast storage areas allow an economic production capacity utilization as well as stockkeeping in line with the requirements of a building site.

F.Advantages of Fabrication

Early fabrication design to improve constructability

Modularization-specific designs

Focused material and equipment procurement planning to support off-site fabrication

Advanced sourcing methods / Established global supplier partners (SRA)

Global market knowledge / Global purchasing volume

Supply chain / Logistics / Expediting

Quality control / Quality assurance

We offer a flexible approach to fabrication solutions, with a range of fabrication options to fit Clients' specific needs.

Thanks to experienced engineers and technicians and well thought-out logistics processes, we are able to guarantee our clients maximum quality and on-time delivery. These prerequisites enable our group of companies to continue and to increase their efforts to develop further innovative prefabricated element sytems into the future despite keen competition, and to respond with flexibility to all market requirements

Use	Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant
Product Type	Sandwich Panel Houses
Design Style	Modern
Application Fields	Steel Structural Fabrication Construction
Type	Customizable
Door	Sandwich Panel Door
Window	Aluminum Window
Usage	Public Housing
Product name	Modular Building Three floors color steel prefabricated house

Tags:

Steel Structure Workshop Building

Steel Frame Warehouses

Light Gauge Steel Construction
